Vibration Shaker Table Systems for Shock and Vibration Battery Testing Solutions
Shock and Vibration testing standards : MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Shock and Vibration Testing Machine Applicable Industries: Automotive, Electronics, Aviation, Vessel, Telecommunication, Military Industry, Measuring Instrument etc.
Shock and Vibration Testing Machine Working Principle:
Shock and Vibration Testing Machine Specifications: EV103-EV220
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling |
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling |
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
Utility
Requirements | 3-phase AC380V ±10% 50Hz |
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Shock and Vibration Battery Testing Solutions
Batteries power many of the things that enable and fulfill our everyday lives. As our lives have become less tethered – devices have surely become more efficient – but also – batteries now provide higher energy densities.
Think for a moment about shipping all these batteries…In very real terms – a shipment can represent a huge energy density – and in a mishap – that energy could be released in a very undesirable way.
Most batteries undergo transportation simulation tests to comply with international shipping standards. This is especially true for lithium ion batteries. To ensure safety during shipment, lithium batteries must be tested per UN/DOT specifications. The UN Manual of Tests and Criteria section 38.3 (UN/DOT 38.3) outlines the tests for lithium batteries. Labtone has the Test Equipment and expertise to perform (UN/DOT 38.3) tests–T3 (Vibration), T4 (Shock), and T6 (Impact).
Transport hazards are not the only dynamic conditions that battery designs must survive. When a portable electronic device sheds it packaging upon receipt, you may find the everyday use environment to be more rigorous than the shipping environment. In an automotive electric / hybrid application, batteries will be exposed to endless vibration as a matter of course. A variety of industry specifications exist for testing batteries to ensure that they can stand up to this type of use:
- IEC 62133 (Vibration, Drop, Shock)
- SAE J2464 (Shock, Drop, Data Acquisition)
- UL 2054 (Shock, Vibration)
- UL 2202 (Vibration, Drop)
- UL 2231 (Drop, Shock, Vibration)
Company profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
shock and vibration testing services :
Presales
- Technical consultation: test method, laboratory planning and suggestion.
- Equipment selection: selection scheme, FAQ.
- Product testing scheme.
In-Sales
- Customer communication and progress report.
- Guidance for pre-installation preparation, equipment commissioning and test run.
- Calibration (when Third Party’s verification is required).
After-Sales
- Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
- Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
- Technical support: special paid services are provided according to customer’s needs.
Detalied Pictures:
Product Tags:
|
|

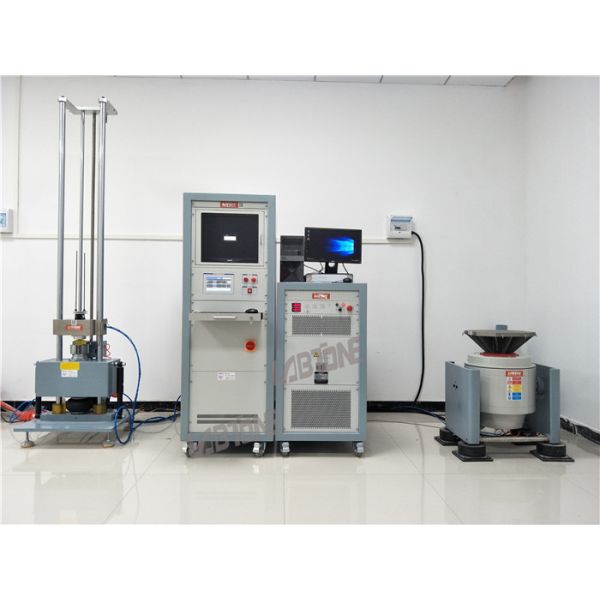

Mechanical Shock and Battery Vibration Table Testing Equipment For Military Industry Images
|
